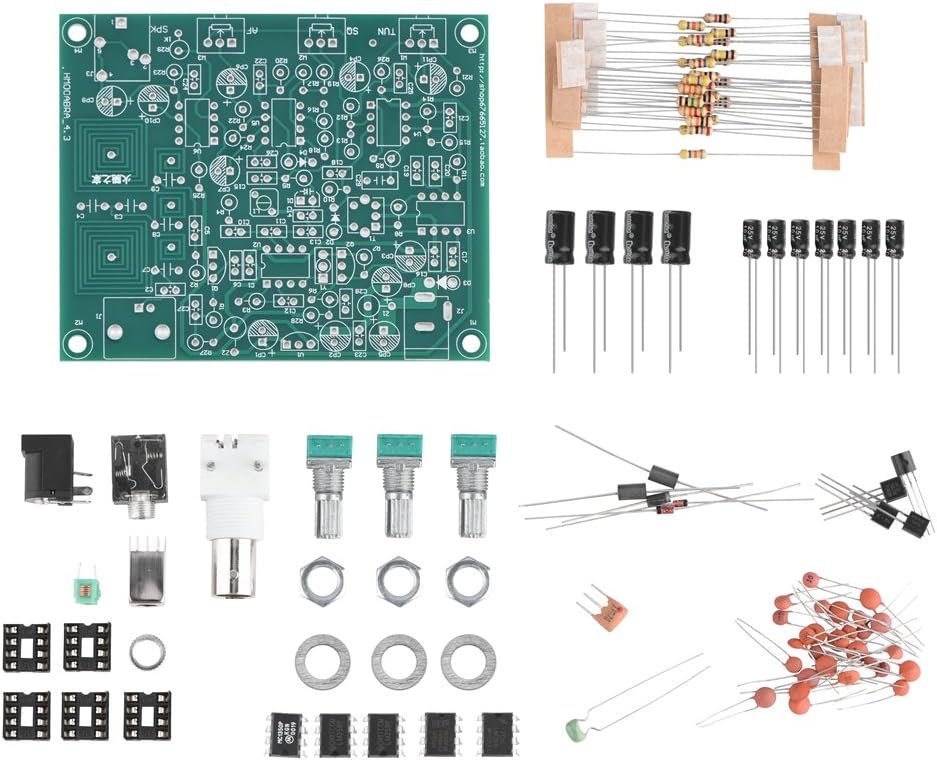

Airband Radio Receiver Aviation Band Receiver (KIT)
Note: The PCB is mislabeled at point T1, it is labeled as L1.
No matter the label this is where the small 10.7Mhz IF transformer goes
This kit is dedicated to receiving calls between aircraft and towers with a good (VHF Yagi antenna), the range is around 190km with a regulated 12volt DC supply.
Main Points:
Power supply: 12 VDC
Antenna: 50 ohms, is not balanced
Typical receiving current: 30 ma
Receive frequency: 118 MHZ to 136 MHZ
Working pattern: AM
